Mounting the microphone higher off the ground can help reduce insect noise.

Microphone extension cables are used for mounting configurations where having the microphone directly on the detector is not suitable. Especially when recording full spectrum, mounting the microphone away from reflective surfaces can help produce better recordings by reducing echos. Also mounting the microphone higher off the ground can help reduce insect noise.

Available Sizes (m): 1.5, 3, 5, 10, 20 and 50

Compatible Detectors

  • Ranger
  • Anabat Swift
  • Anabat Express
  • Three channels: simultaneous acoustic (stereo or mono) and ultrasonic recording, with custom settings per channel
  • Easy to use stand-alone recorder, no phone required for setup
  • Automatic schedules for easy deployment, or create your own custom schedule using the colour touchscreen or using Toolbox in Insight
  • Weatherproof, robust, camouflaged, tripod mountable housing
  • You can choose from our range of microphones to suit your needs, all of which are weatherproof and user-replaceable
  • Power with 4 or 8 AA batteries, or external power with solar panel options
  • Lasts for 100 nights (full spectrum ultrasonic) or 700 hours recording time (acoustic) on 8 AA batteries*
  • Built-in GPS with transect mode available
  • Built-in temperature sensor
  • Headphone output to check microphone function and listen to bats in frequency division audio
  • Includes magnetic lanyard for checking status
  • Analyse recordings with free Insight software
External Dimensions H 194mm x W 123mm x D 50mm / 7.64” x 4.84” x 1.97”
Weight 478g / 16.86oz. (without batteries)
Power Requirements 4 or 8 AA batteries, external power and solar power options
Battery Life 700 hours acoustic / 100 nights ultrasonic using 8 AA batteries*
Memory 2 x SDHC/SDXC cards (2 x 1TB)
Audio Output Headphone jack for frequency division output (ultrasonic) and stereo reproduction (acoustic)
Frequency Range 20Hz up to 250kHz (depending on microphone)
Housing Camouflage, weatherproof and shockproof (IP67) with tripod mount
GPS Built-in (daily GPS fixes, transect mode - GPS fix every second)
File Output Full spectrum (.wav), zero crossing (.zc), GPS track (.gpx) and temperature sensor log (.csv)
Sampling Rates 500, 384, 320, 192, 96, 48, 44.1, 32, 24, 22.05 ksps
Channels 3 channels. 1 (front) ultrasonic or acoustic, and 2 (sides) acoustic-only. Capable of simultaneous recording (stereo acoustic and ultrasonic)
Display 2.4” Colour LCD touchscreen
Warranty Recorder 2 years, microphones 1 year
Optional Accessories Low-profile side-mount or front-mount acoustic microphones, front-mount omnidirectional or directional ultrasonic microphone, lockable security box, microphone extension cables, fused power lead, solar panel
* Ultrasonic battery life estimations based on 10% bat activity at 25°C and 10 hour nights recording at 320ksps using 8 alkaline AA batteries. Acoustic battery life estimations based on continuous mono recording at 32ksps using 8 alkaline AA batteries

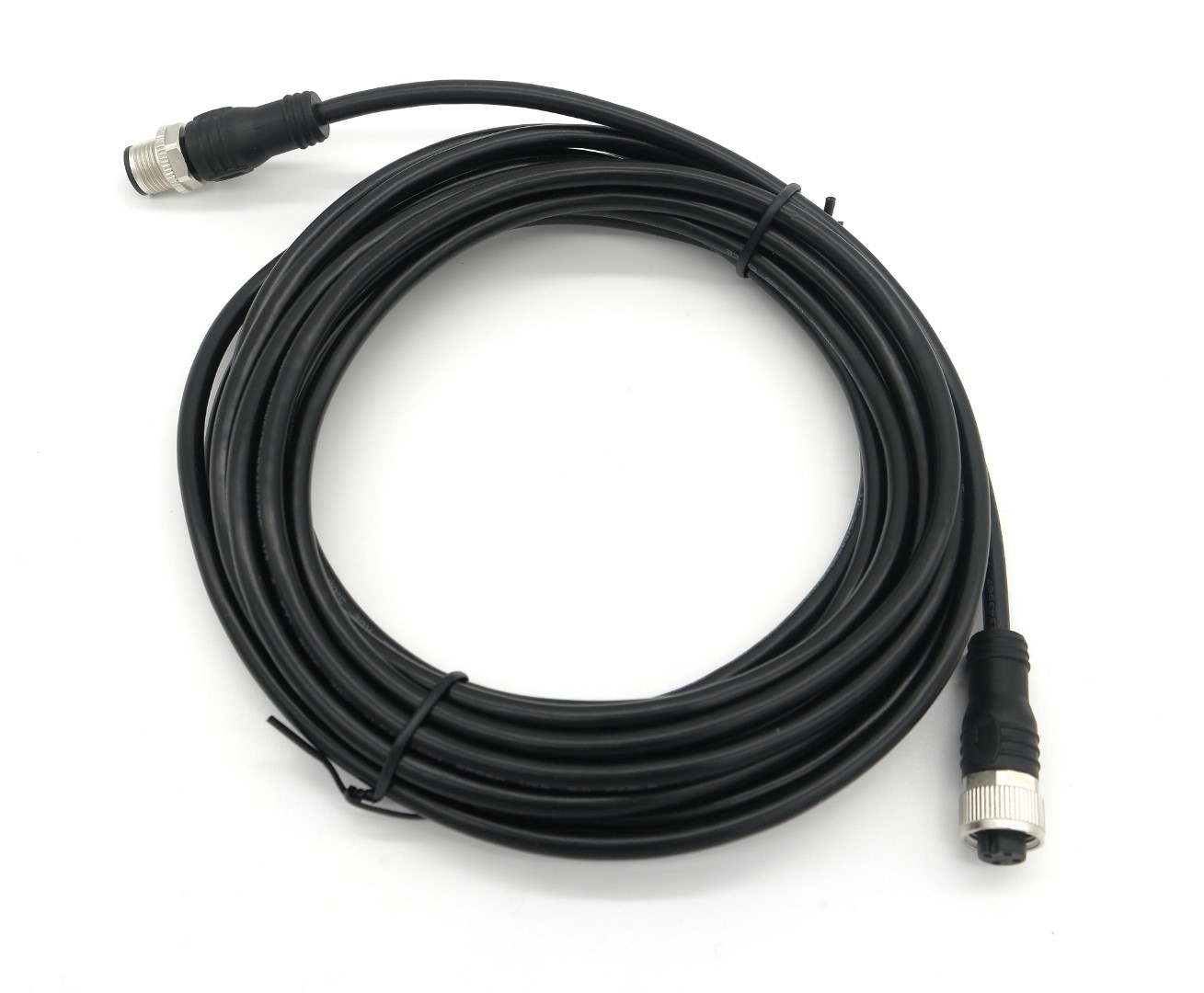

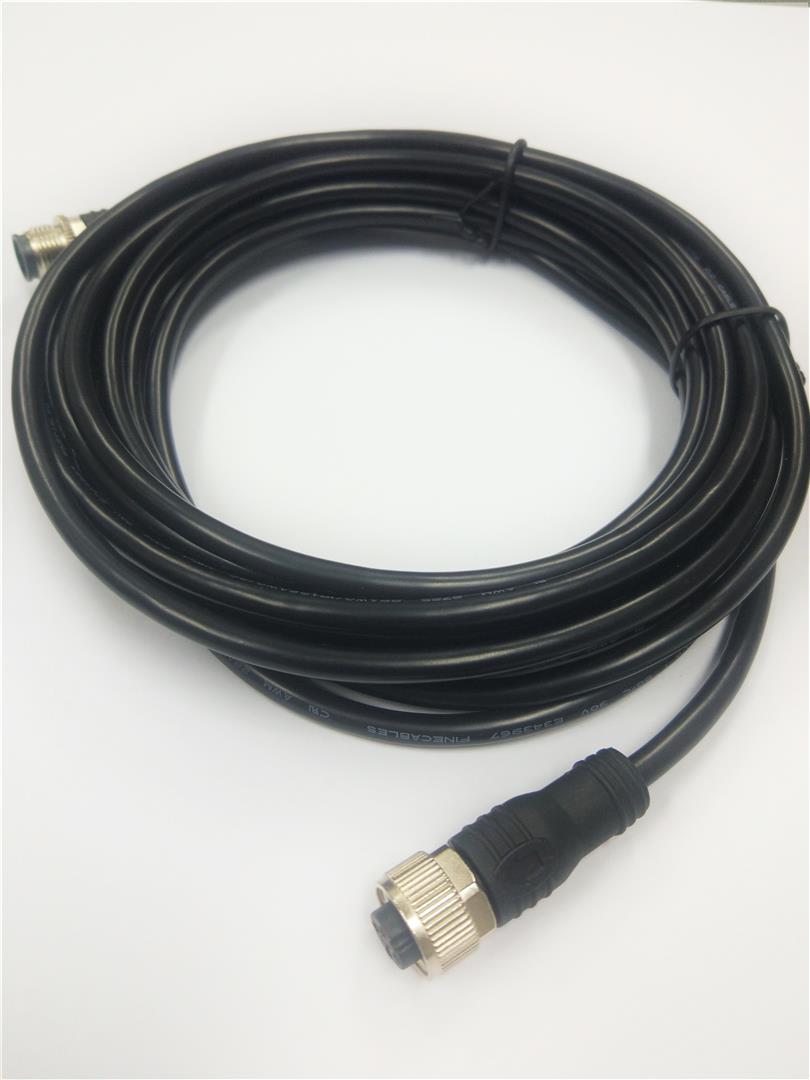

Microphone Extension Cables

Product Code: Extension Cables

AU$129.00
